Metal Recliner Handle
From: $15.90

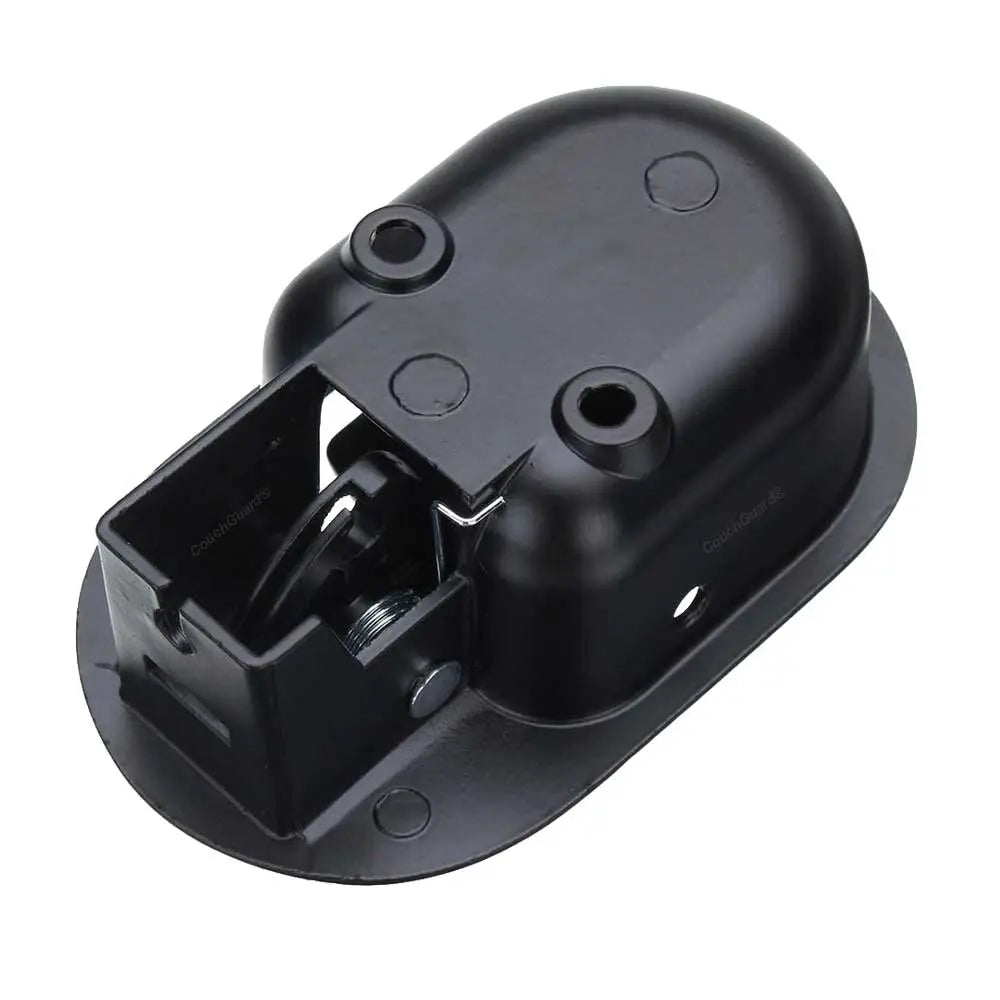

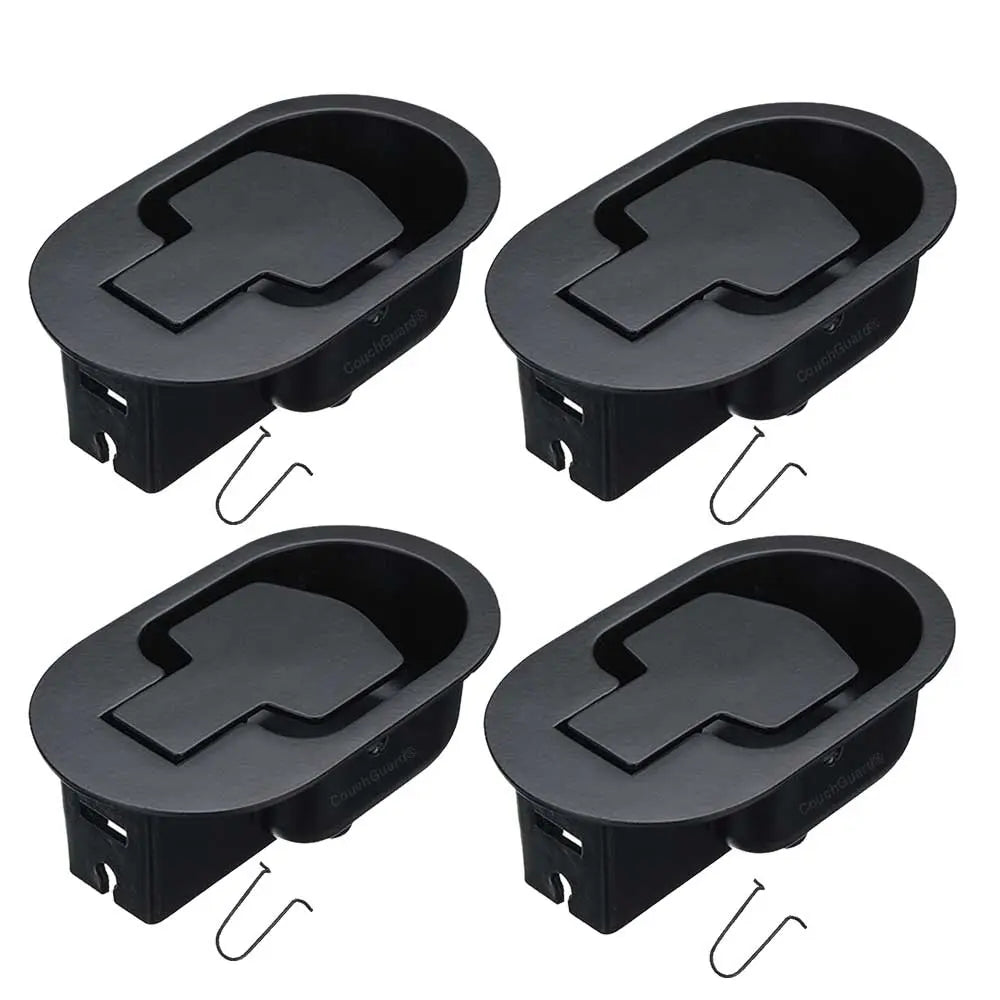

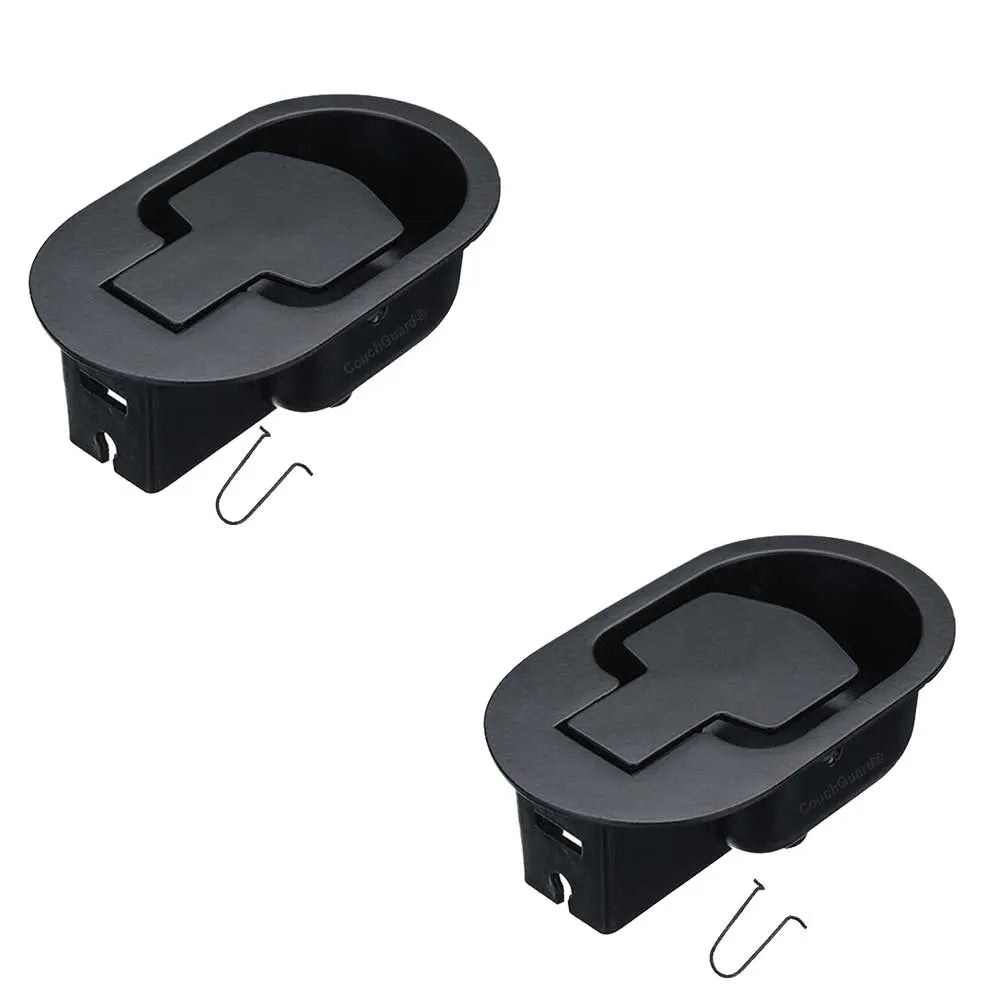

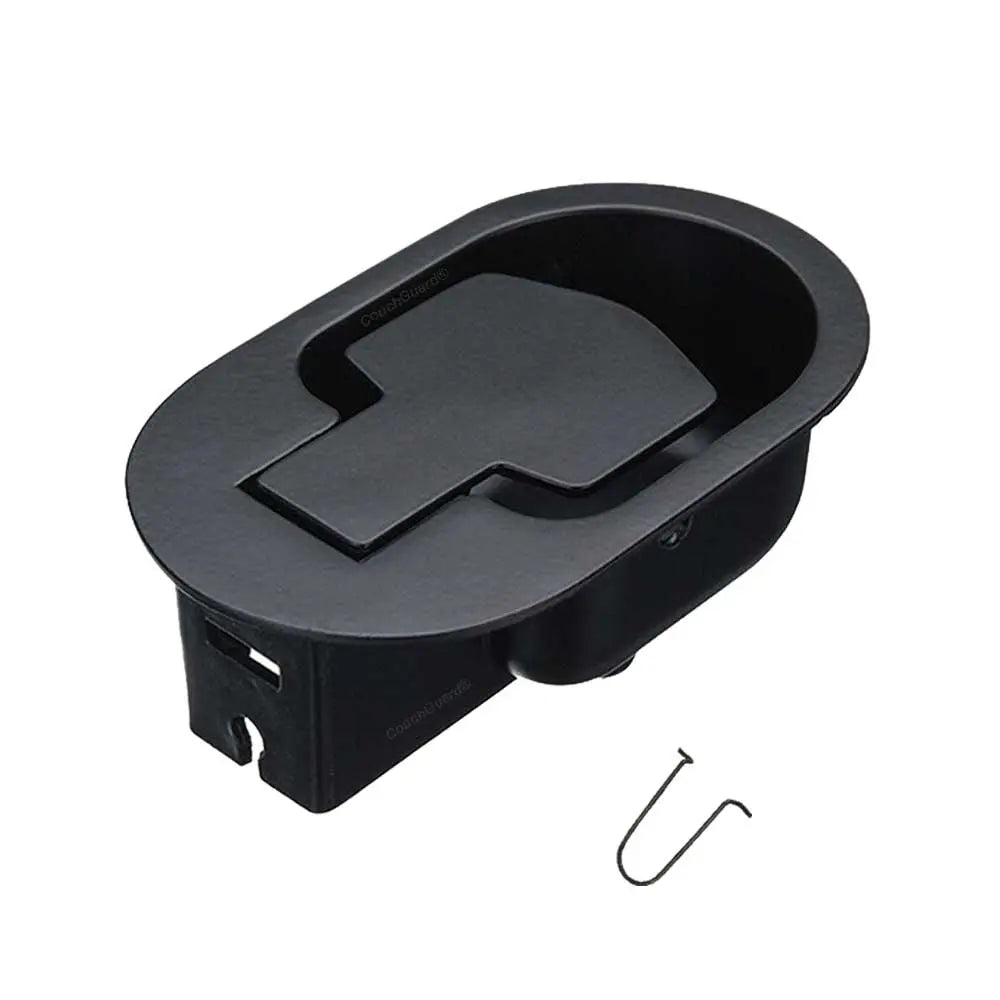

This high quality, aluminium alloy recliner handle measures 113mm x 70mm, has perfectly straight edges on the top and bottom unlike some on other websites. This can be used as a direct replacement to the Large Black Plastic Recliner Handle.
Some of our recliner cables come with the inline spring on the cable. This is easily removed if you don’t require it. Simply unwind it off.
How To Measure a Recliner Chair Cable? Tap or click on the measuring tab below, read and use the Cable Cheat Sheet.
High Quality Metal Recliner Handles From CouchGuard®
- Description
- Additional information
- Reviews (9)
- Measuring
- Directions & Video
- FAQ's
Description

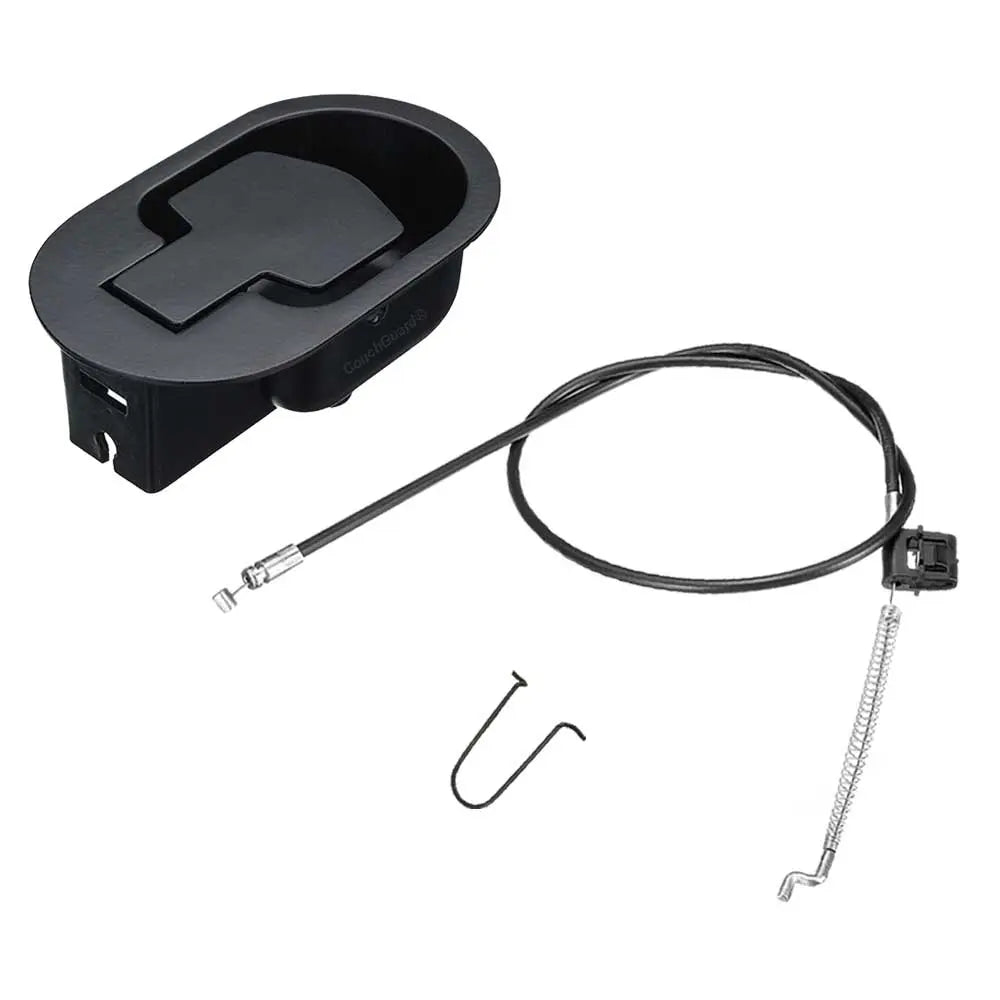

The CouchGuard® Large Black Metal Recliner Handle and cables can be ordered in many different ways. Either as Handle Only, Cable Only or as a complete unit, handle with cable.
This recliner handle measures 113mm x 70mm across the outer face and has many different exposed cable lengths. To make sure you order the correct recliner cable, please use the Cable Cheat Sheet on this page. Tap or click on the “Measuring” tab.
Once you know your exposed cable length, choose from one of the “Select Your Option” in the dropdown menu.
Additional information
9 reviews for Metal Recliner Handle
Only logged in customers who have purchased this product may leave a review.
How To Measure Recliner Cable
You can print off a pdf where all you have to do is fill in the blank spots with your measurements, A, B and C
Open Full Size Cable Cheat Sheet Here
All recliner parts are universal. Makes of recliners, brand names or manufactures part numbers don't mean anything.

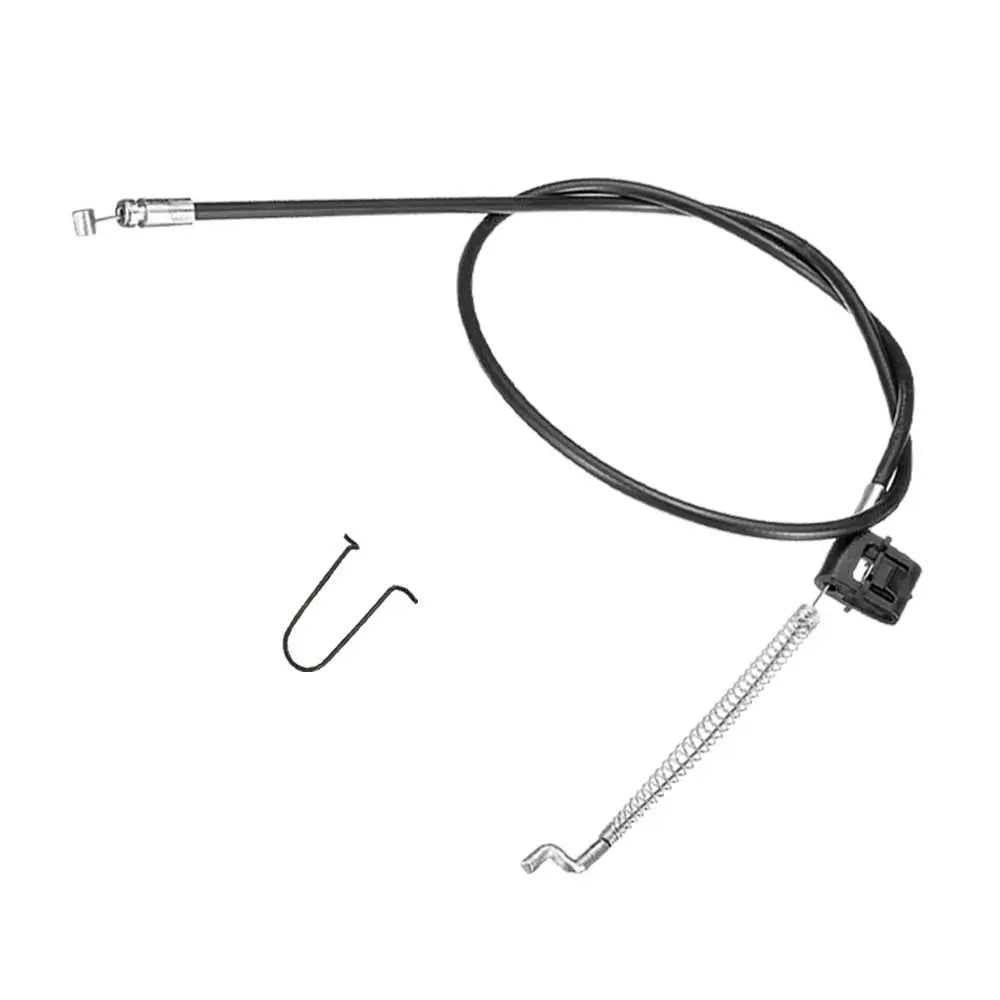

1 Measure the complete length of the cable C from barrel to the very end of the "S".,
2 Now measure the black plastic sheath B including the clips on both ends.
3 Measure the barrel diameter A. This is across the round face not the length and should be 6mm.
4 Sub track the complete cable length from the black plastic sheath length and this gives you the exposed cable length. This is the most important measurement. Your old cable can be shorter but still have the same exposed cable length as ours.
5 IF your cable is longer then 830mm or 965mm look at the 1100mm cable options. Choose "Cable Only" from the menu above
The 830mm cable has a 6mm barrel - black plastic sheath 733mm and exposed cable length 97mm - Choose "830mm Cable - 97mm Exposed" from the drop down menu above
The 965mm cable has a 6mm barrel - black plastic sheath 826mm and exposed cable length 139mm - Choose "965mm Cable - 139mm Expoosed" from the drop down menu above
1100mm Cable exposed 100mm - If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the "S". Choose 1100mm Cable EXPOSED 100MM from the drop down menu above
1100mm Cable exposed 139mm - If your complete cable length is longer then the two listed above you may choose this option. Measure the exposed cable length from the black plastic clip to the very end of the "S". Choose 1100mm Cable EXPOSED 139MM from the drop down menu above.
How To Measure A Recliner Handle
1 Measure the outer face of the handle, left to right.
2 Measure the outer face of the handle, top to bottom.
3 This recliner handle measures 113mm x 70mm and takes the 6mm barrel. There can be a couple mm tolerances and our trigger will still fit! Choose "Handle Only" from the drop down menu above Choose "Complete" and your cable length from the drop down menu above
Removing & Fitting A Recliner Cable From Handle
1 With the handle already out, locate where the black cable sheath clips into the handle.
2 Remove the wire retaining clip that loops over the cable with a small flat blade screw driver.
3 Unclip the cable from the handle, remove the barrel from the holder and dispose.
4 With the new cable, guide the barrel into the plastic handle barrel holder then clip the plastic sheath clip back into handle.
5 Replace the wire retainer over the cable and clip one side at a time back into place.
6 Test the new cable for smooth operation before refitting to recliner.
Remove And Fitting A Recliner Handle With Cable
1 Place a drop sheet or old towels around the recliner
2 Remove the two retaining screws from the trigger release handle.
3 Gently turn the recliner over remember correct lifting methods.
4 Locate the exposed cable end.
5 Manually open the recliner action by levering on the main actuator tube holding the foot rest section not letting it to fling open.
6 Using a pair of pointy noise pliers" clamp the plastic cable retaining clip clips together and remove from the recliner action frame.
7 Locate the "S" end of the cable and remove from the operating pivot. Holding the cable in one hand and the plastic trigger end in the other guide the complete unit out thru the trigger release end opening.
8 Check the new trigger release and cable for correctness before fitting.
9 Feed the new trigger release and cable thru the trigger opening end.
10 With the new plastic trigger release handle sitting in the correct position re-fasten it to the recliner.
11 Attach the "S" end of the cable to the operating pivot, then the plastic retaining clip to the recliner action frame. Test the new trigger release for smooth operation.
12 Gently close the foot rest and turn the recliner back over.
13 Sit in the recliner and open the foot rest using the new trigger release and check for a smooth operation.
Do you stock Pegar recline parts?
No unfortunately. Pegar handles have been obsolete for many years and we don't stock any cables suitable.
How do you measure a recliner spring?
Recliner springs are measured by the overall length. You'll find a break down of each recliner spring on each of the products pages. Simply click or tap on the "Measuring" tab.
Can I get a different shade brown?
No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.
My recliner handle measures 113mm x 70mm. Will your handles still fit?
Yes. There can be a couple mm tolerances in the measurements given.
My recliner handle measures 11cm x 7cm. Will your handles still fit?
Yes. Converted to millimetres is 110mm x 70mm.
How do you measure a recliner cable?
You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.
