eMoMo RemoP20LR
$45.95

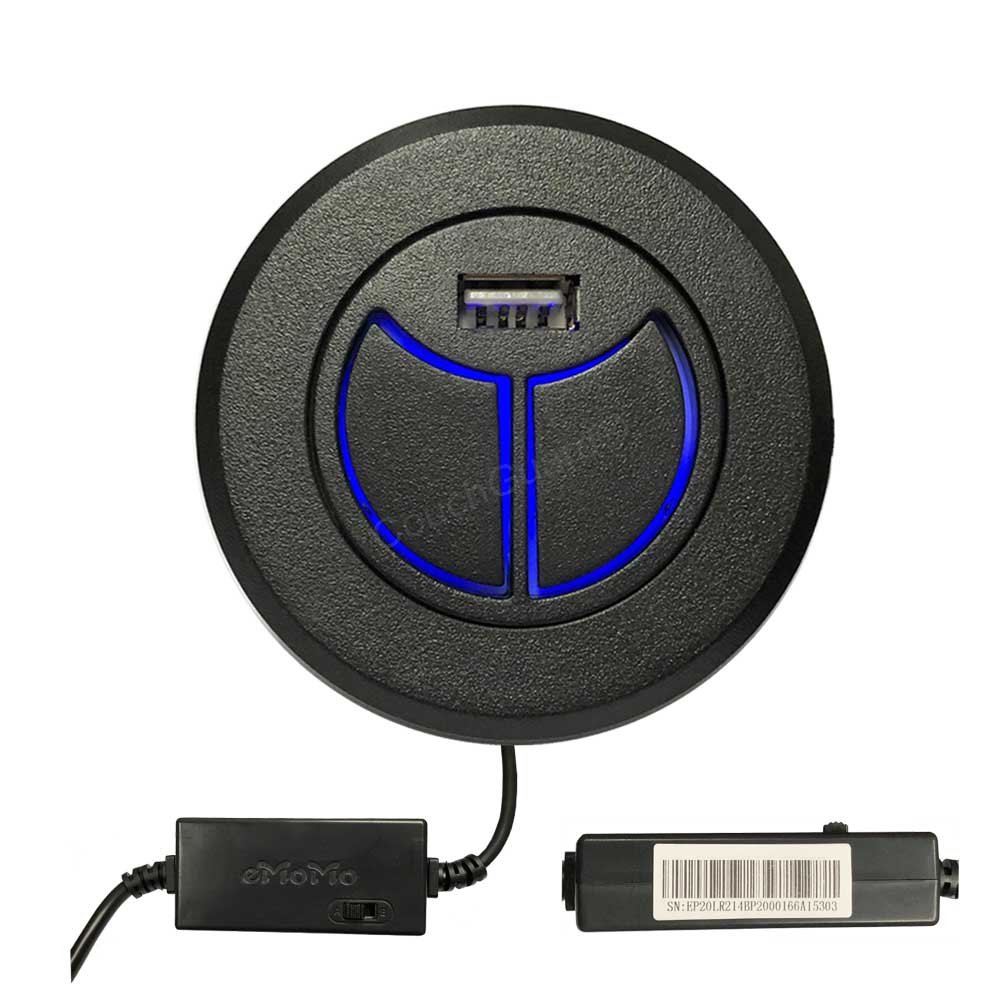

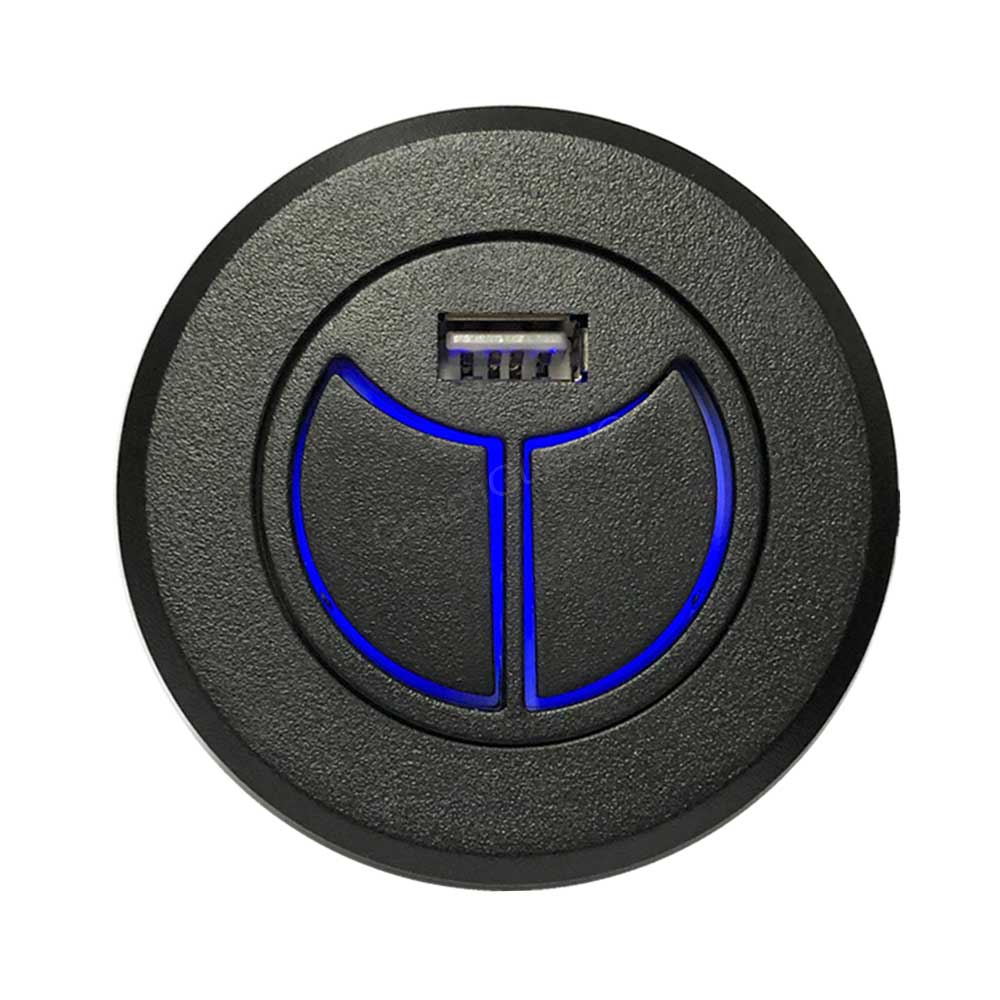

eMoMo RemoP20LR USB power recliner switch that will fit most electric recliner chairs. The power recliner switch with USB is round in shape, has a built in control box and comes with the standard right angled 5 pin male plug. Easy to fit.
Please note, this replacement switch is not compatible with the eMoMo Tech –RemoP10 or RemoP20LR U
Buy Genuine eMoMo Tech Parts From CouchGuard®
- Description
- Additional information
- Reviews (0)
- FAQ's
- Directions
Description
eMoMo Power recliner switch RemoP20LR with USB from CouchGuard is round in shape and comes in black plastic with industry standard 5 pin plug, right angled. This plug will also fit the straight plug 5 pins.
To find which version of RemoP power recliner switch you have, you’ll need to look for the following on each of the products.
RemoP20LR – Has a control box with a switch A-B on the front and a serial number starting with SN: EP20LR
RemoP20LR U – Has the serial number on the back of the switch itself and starts with SN: WTP20LRU
RemoP10 – Has a control box with a serial number on the side starting with SN: EP10
RemoP10LRA – Has a control box with a switch A-B on the front and a serial number on the side starting with SN: EP10LRA
Additional information
Weight | 0.450 kg |
---|
Only logged in customers who have purchased this product may leave a review.
Whats the difference between the KDDY022 & KDDY022A Battery?
A. The KDDY022 uses the 6pin adaptor plus seperate charger to charge. This is because these batteries are generally mounted up under the recliner. The KDDY022A uses the recliners original power supply to charge.The motor in my lift chair measures 400mm. Will this kit still fit?
A. Yes. You just need to edge the motor out to the desired length then fit the remaining clevis pin.
We have a Pride lift chair that the motor has stopped working in. Will this kit fit?
Yes. We have made this kit universal so makes and models don't come into play as you are replacing the complete electrics with the latest on the market. Just check the overall length of the motor is no shorter then ours.
My recliners have LED and USB connection in them. Which battery pack is suitable?
The Okin Battery Pack 1800 is designed for an inline back up. This means it connects between the power supply now and the chair. Power goes out, you wouldn’t even know it, even with the LED and USB connected. This battery pack is still the best option if you’r planning on using it a s standalone unit and would last up to 3 months before charging is required with NO LED.
Both are not suitable IF you’r planning on using them as  a standalone power source.
No battery is going to last long when the LED is glowing 24/7. Same as leaving your car lights on! You’d be charging it daily.
Do I require a separate charger to recharge the battery pack?
No. The 1800mAh Power Pack has an inbuilt charging board which means you use you standard recliner power supply to charge it. The 1300mAh comes with its own seperate charger.
My motor says its 24V. Will this power supply still be ok?
Yes. All recliner chair motors are 24V or 25V and use the 29V power supply.
How do I know my plug is the same size?
These plugs are worldwide, industry standard 0l plugs. One size. When you look at the male plug end it looks like zero (O) and a one ( l ) hence why its called the oh one plug.
How to get out of a power recliner when the power goes out?
All you need is one of our battery back up for power recliners. We have two options. The best option is the 1800mAh Battery Pack which is an inline solution. Always on charge and kicks in automatically when the power goes out.
Removing & Fitting General Electrical Components
1  Place a drop sheet or old towels around the recliner.
2 Turn off and remove the power supply plug from the mains.
3 Gently turn the recliner over onto its side or on its back. Remember correct lifting
methods.
4 Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5 Using a pair of side cutters, snip the cable ties that are retaining the lead
to the frame.
6 Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7 Check all other leads are out of the way of moving parts.
8 Turn the recliner back over to normal seating position
9 Plug the main power supply back into the wall.
10 Test the new component. Operate the lift chair recliner to its fullest position
and check that all the leads are clear and not stretched.
11 Return the lift chair to its normal seating position.
turning the power supply back on. Leads can sometimes get jammed between
moving parts causing a dead short after the chair is moved.
exceed this time, wait 20 mins before using again.
