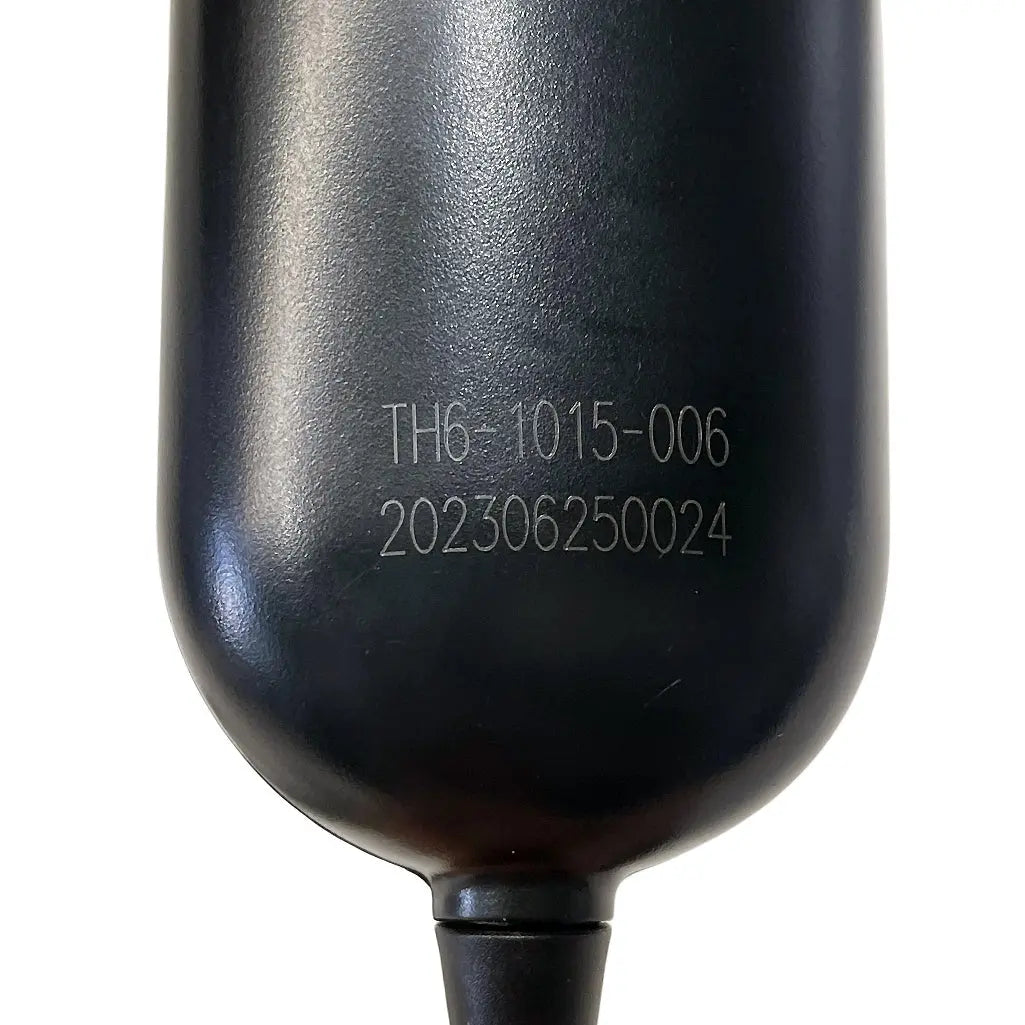

La Z Boy Handset TH6-1015-006

1. Place a drop sheet or old towels around the recliner.
2. Turn off and remove the power supply plug from the mains.
3. Gently turn the recliner over onto its side or on its back. Remember correct lifting
   methods.
4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
5. Using a pair of side cutters, snip the cable ties that are retaining the lead
   to the frame.
6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
7. Check all other leads are out of the way of moving parts.
8. Turn the recliner back over to normal seating position
9. Plug the main power supply back into the wall.
10. Test the new component. Operate the lift chair recliner to its fullest position
    and check that all the leads are clear and not stretched.
11. Return the lift chair to its normal seating position.

Tip: Check that all the leads are cable tied away from moving parts before
turning the power supply back on. Leads can sometimes get jammed between
moving parts causing a dead short after the chair is moved.

DO NOT exceed more then 2 mins operating time at anyone time. If you do exceed this time, wait 20 mins before using again.
