okin deltadrive ds1 actuator

Okin DS1 1.28.000.140.30

From: $199.00

$8.90 Flat Rate Delivery

Australia Wide

SECURE SITE

Safe & Secure

Email

info@couchguard.com.au

ESTABLISHED

EST. 2011

FREE CALL

1300 CouchGuard

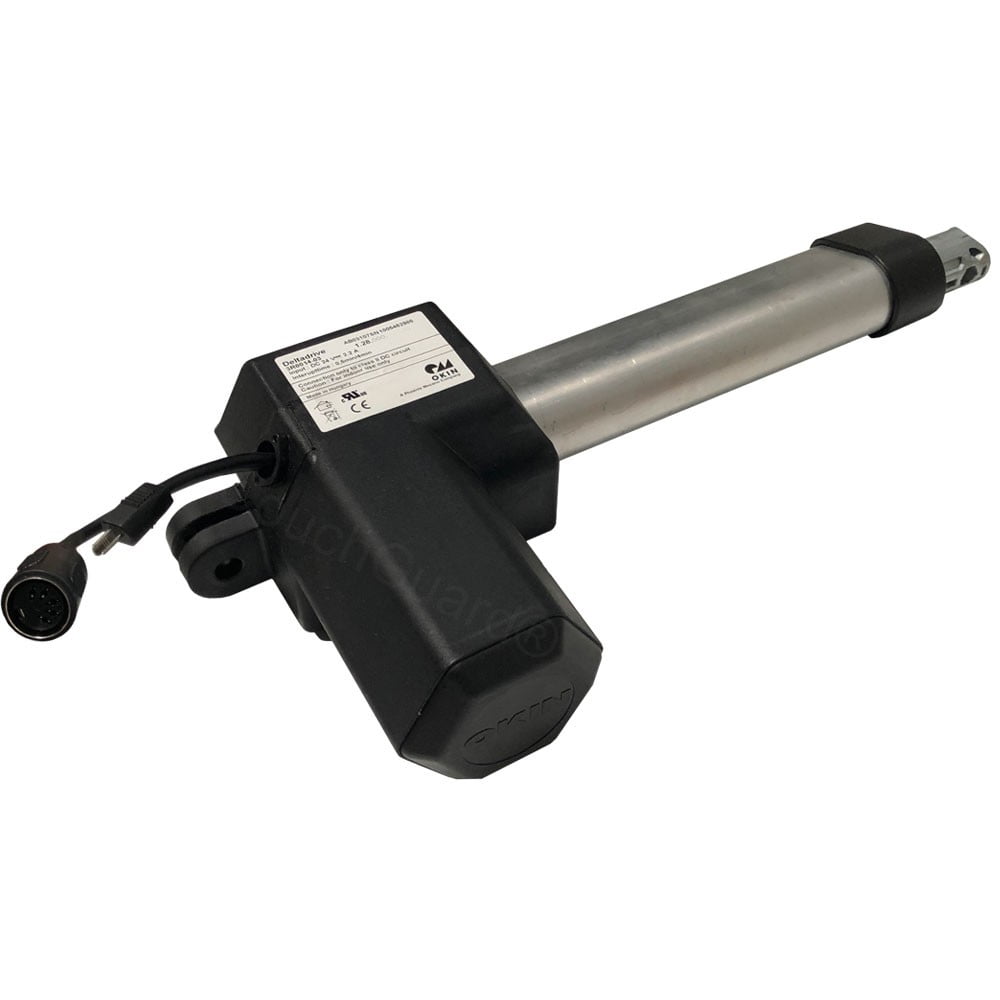

The Okin DS1 1.28.000.140.30 actuator is a standard actuator found in single motor lift chairs with two button control. Has a mini install length 384mm and stroke 206mm. 6,000H Push / Pull and 12.5mm/s

We have also put together a complete Okin Lift Chair Kit with all genuine Okin parts. Select this option from the drop down menu for the current price.

Buy Genuine Okin Parts From CouchGuard®

Price Match

Seen the same, Genuine Okin, TiMOTION or Kaidi part cheaper? Click here to Email Us.

Part must from an Australian supplier, in stock and included delivery. Please include the url of the cheaper part in your email.

Before You Buy An Actuator
  • Check The Power Supply Green Light Is ON
  • Check the leads for damage
  • Check the switch isn’t faulty
  • Check the actuator in another recliner

All these checks can be done on another recliner and may save you hundreds of dollars doing so.

Actuator Warranties

We offer the following warranties:

  • 36 Months Warranty on all our compatible actuators.
  • 24 Months Warranty on all genuine Okin & TiMOTION actuators.
  • 12 Months Warranty on all genuine Kaidi, eMoMo & Mulin actuators.

All of the actuators supplied are rigorously tested by the manufacture prior to leaving their facility. If a defect becomes apparent within 6 (six) months after taking delivery of the actuator, it will be refutably assumed that the defect already existed in the actuator, unless such an assumption with the nature of either the object of the delivery or the defect.

T&C’s apply

SKU OKIN-DS1-1-28-000-140-30 Category Tags , Brand: okin logo phoenix mecanoOkin

Description

Okin Actuator DS1 1.28.000.140.30 Okin is a specialist in drive and system technology for motorised armchairs / lift chairs with more than 35 years of experience in the seating industry.



Additional information

Weight 3.1 kg
Actuator Options

,

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Removing & Fitting General Electrical Components

  1. Place a drop sheet or old towels around the recliner.
  2. Turn off and remove the power supply plug from the mains.
  3. Gently turn the recliner over onto its side or on its back. Remember correct lifting
    methods.
  4. Locate the component and its lead. Follow the lead along to the plug end remembering where it runs.
  5. Using a pair of side cutters, snip the cable ties that are retaining the lead
    to the frame.
  6. Unplug the socket and remove the old component. Place the new component lead along the same path as the old and cable tie the new lead to the frame.
  7. Check all other leads are out of the way of moving parts.
  8. Turn the recliner back over to normal seating position
  9. Plug the main power supply back into the wall.
  10. Test the new component. Operate the lift chair recliner to its fullest position
    and check that all the leads are clear and not stretched.
  11. Return the lift chair to its normal seating position.
Tip: Check that all the leads are cable tied away from moving parts before
turning the power supply back on. Leads can sometimes get jammed between
moving parts causing a dead short after the chair is moved.
DO NOT exceed more then 2 mins operating time at anyone time. If you do exceed this time, wait 20 mins before using again.

OEM Actuator Kit Contains

  • Okin 2 Btn Hand Control: x 1
  • 1.28.000.140.30 Actuator: x 1
  • Okin PD12 Power Supply: x 1
  • Okin Power Cable: x 1
  • Okin Ol Extension Lead: x 1
  • Okin Hand Control Extension Lead: x 1

Product FAQ's

No unfortunately. Pegar handles have been obsolete for many years and we don’t stock any cables suitable.
Recliner springs are measured by the overall length. You’ll find a break down of each recliner spring on each of the products pages. Simply click or tap on the “Measuring” tab.
No. There is only 1 colour brown available worldwide. There is no choice what shade of brown it is sorry.
Yes. There can be a couple mm tolerances in the measurements given.

Yes. Converted to millimetres is 110mm x 70mm.

You need to remove the trigger and cable from the recliner, disconnect the cable from the handle and use the Cable Cheat Sheet that is on the website.
Click or Tap on the “Measuring” tab on the products page and follow the Cable Cheat Sheet to measure your cable correctly. Make sure you disconnect your cable from the handle before measuring. If you cable has broken the barrel off of the end, simply add that measurement, 3.5 or 6mm to the overall length measurement.

Yes you may click and collect. Best you email prior to make sure someone is in. Cash Only or order online and select “Pick Up From Coolum Beach” during checkout.

Don’t see your question? Read our full FAQ’s here.
