$18.50

In stock
5 out of 5
1 customer review|Add a review

$18.50

Recliner Parachute Pull Cable or the D Style Recliner Pull Cable come in two exposed cable sizes only. 123mm which is the most common and the 79mm. Please measure your exposed cable length as per our image suggests.

There can be a couple millimetres difference in your exposed cable length. For example, if you cable measures 82mm then the 79mm Exposed will work fine. If its 127mm, then the 123mm will work fine.

The Long Neck pull cable is 145mm from the top of the black mounting block (6 holes) to the top of the D handle.

Buy Quality Recliner Pull Cables From CouchGuard®

SKU: CGDS-79 Category: Tags: , Brand: couchguard recliner parts leather repair kit logoCouchGuard ®
Clear

Description

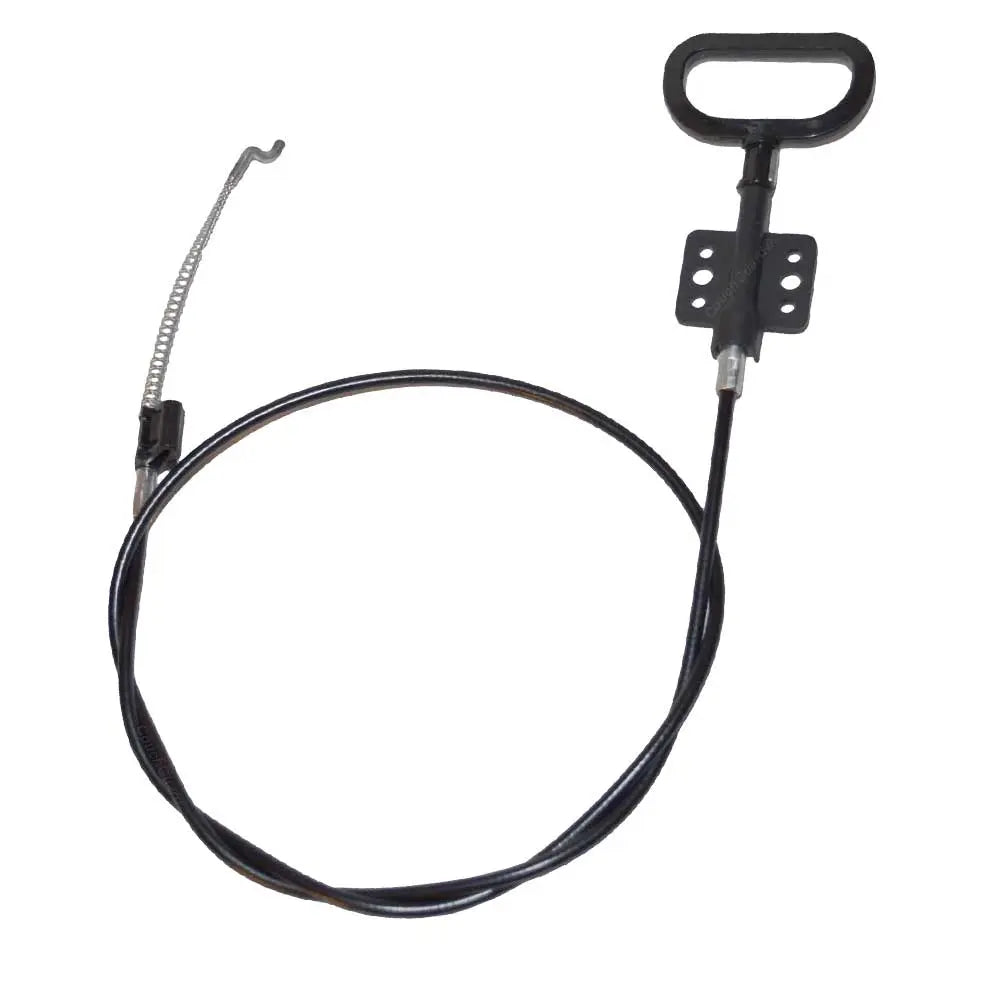

The Recliner Parachute Pull Cable or D style cable, comes in two sizes only, 79mm and 123mm. Comes complete handle and cable and are a universal fit.

The overall length of the 79mm exposed complete cable is 1050mm and the 123mm exposed is 1050mm. Tap or click on the Measuring tab to read how to measure or tap or click on the images to see how to measure the exposed cable length.



Additional information

Weight 0.150 kg
Exposed Cable

, ,

1 review for Recliner Parachute Pull Cable

  1. 5 out of 5

    Nick Nucara (verified owner) –

    5 Stars

Only logged in customers who have purchased this product may leave a review.

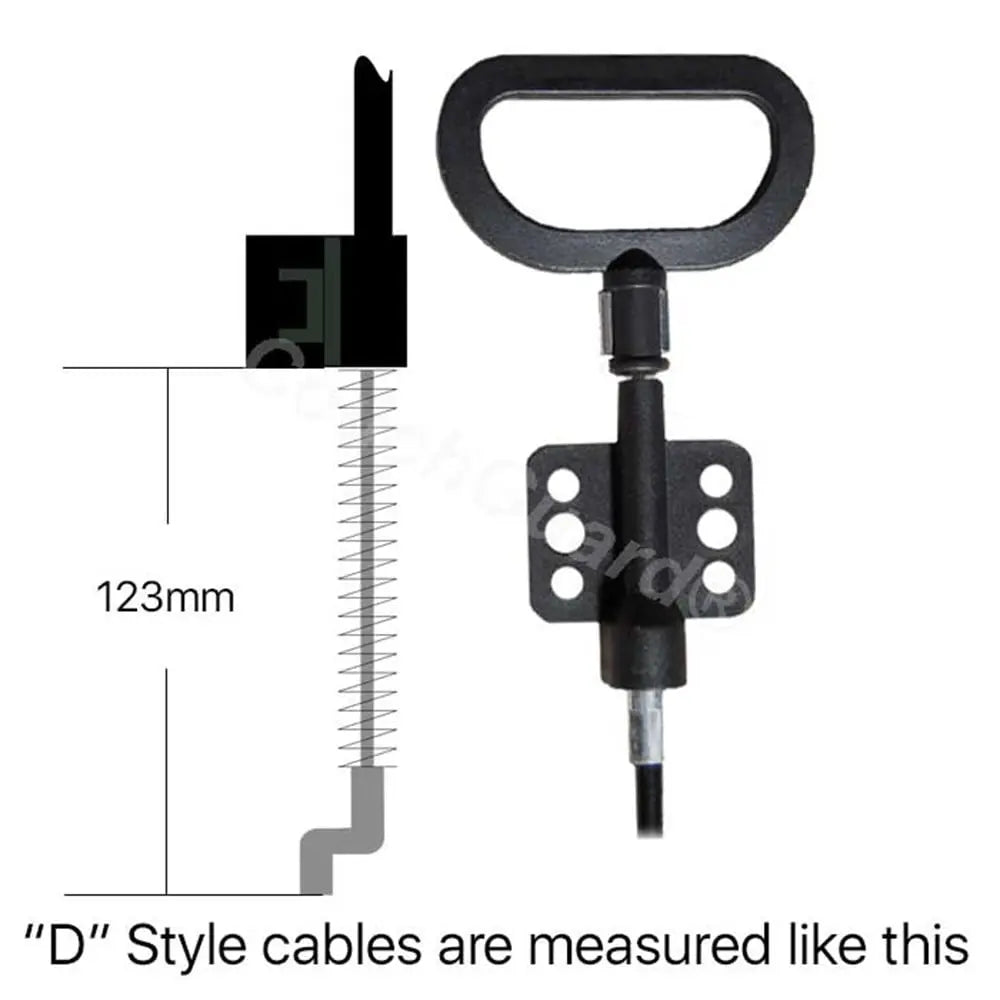

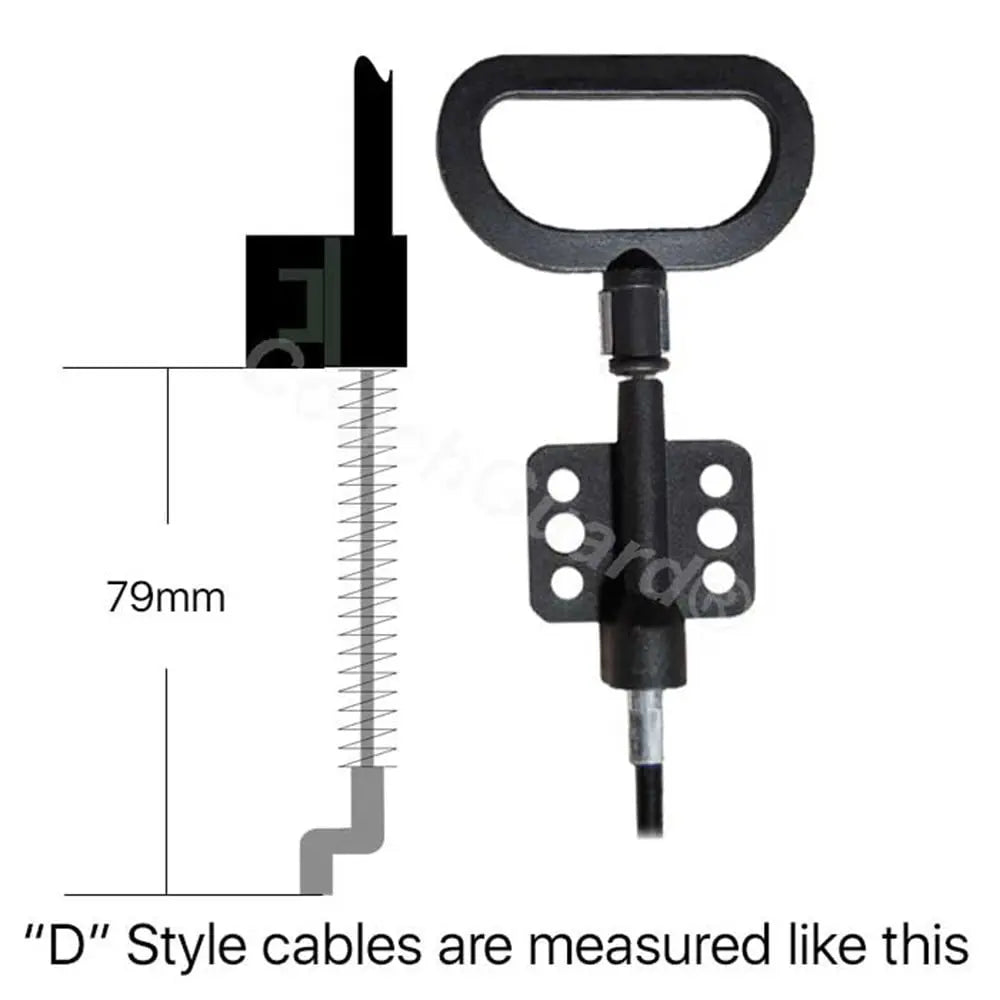

How To Measure The Recliner Parachute Pull Cable

1 Measure the exposed cable length only. From the black plastic clip to the very end of the “S” end.
2 The measurement will be 79mm or 123mm.

All relciner parts are universal. Makes of recliners, brand names or manufactures part numbers don’t mean much.

Please choose / measure carefully as returns reorders will incur a handling fee of $10.00

Removing & Fitting A Recliner Pull Handle

1 Turn the recliner on its side and manually open the recliner from underneath by finding the cable end then activate the release by hand.
2 With the recliner still on its side, disconnect the “S” and the black plastic clip located on the end of the sheath and attached to the recliner action itself. You will need a pair of pointy noise pliers.
3 Turn the recliner back and recline the recliner right back.
4 With a philips head screw driver, remove the 4 retaining screws from the plastic handle located on the side of the seating cushion.
5 Fit the new cable by following these directions backwards from step 4.
6 Test the recliner opens smoothly.

If You Can’t Remove The Pull Handle Screws

1 Turn the recliner on its side and manually open the recliner from underneath by finding the cable end then activate the release by hand.
2 Locate the seating cushion retaining screws and remove. Generally there will be 4.
2 in each corner. This will allow the seating cushion to slide forward making the handle retaining screws more accessible.
2 With the recliner still on its side, disconnect the “S” and the black plastic clip located on the end of the sheath and attached to the recliner action itself. You will need a pair of pointy noise pliers.
3 Turn the recliner back and recline the recliner right back.
4 With a philips head screw driver, remove the 4 retaining screws from the plastic handle located on the side of the seating cushion.
5 Fit the new cable by following these directions backwards from step 4.
6 Test the recliner opens smoothly.
